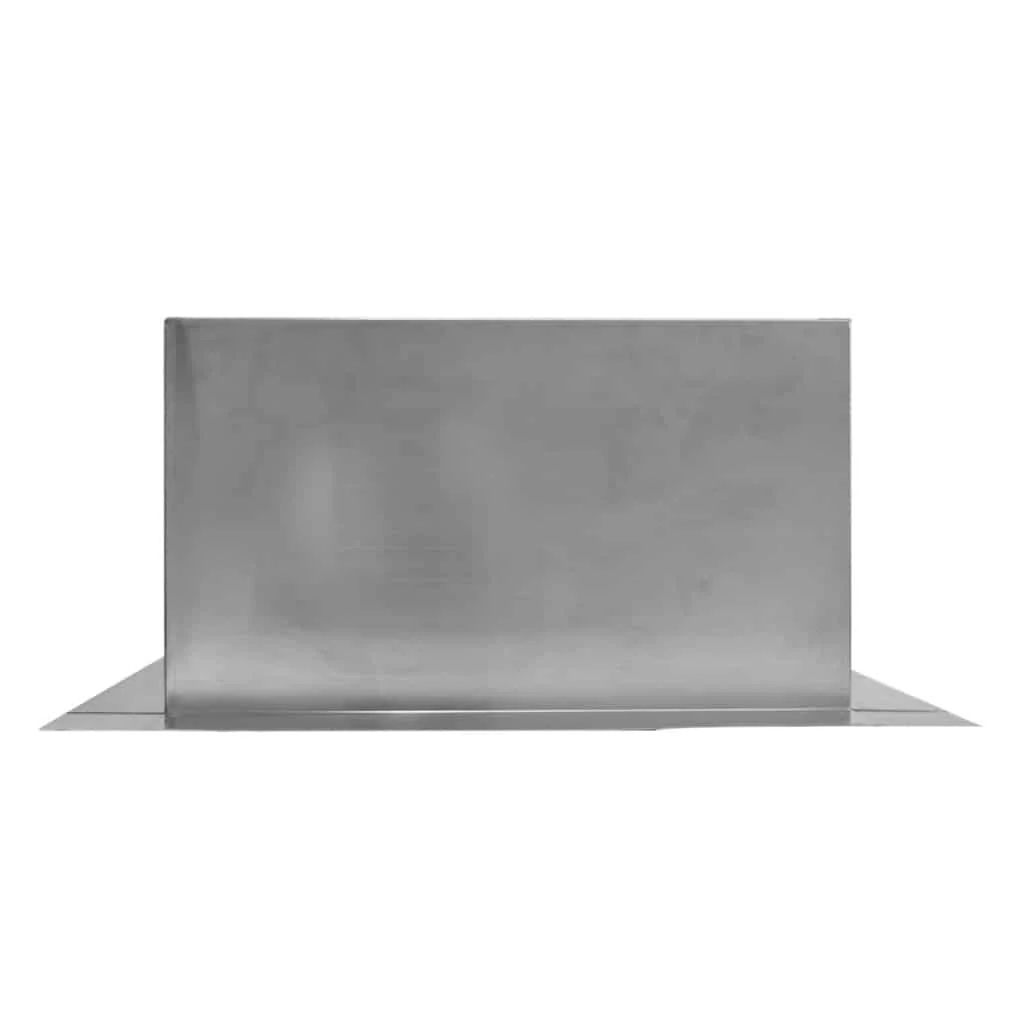

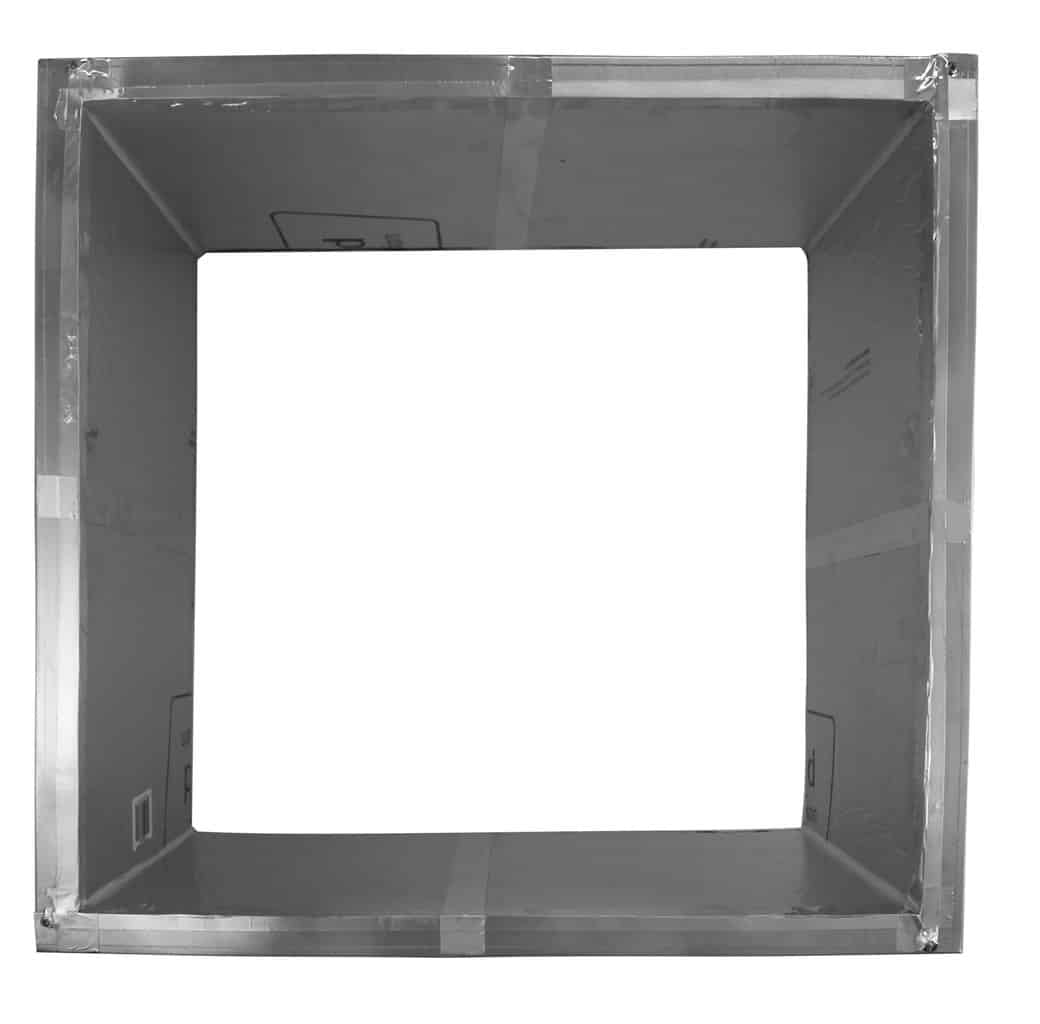

Insulated Square Roof Curb for 18" Diameter Vent | 12" high walls
Roof Curb 21" Square x 12" High | R-Value 6 | SRC-18-H12-Ins
This insulated roof curb has a 21" square OD that will fit a vent or fan with a 21.5-inch OD or AVP's 18-inch vents or fans. These insulated curbs are only compatible with vents or fans with curb mount flange. AVP's prefabricated Roof Curbs are for flat roof or low-slope roof applications.

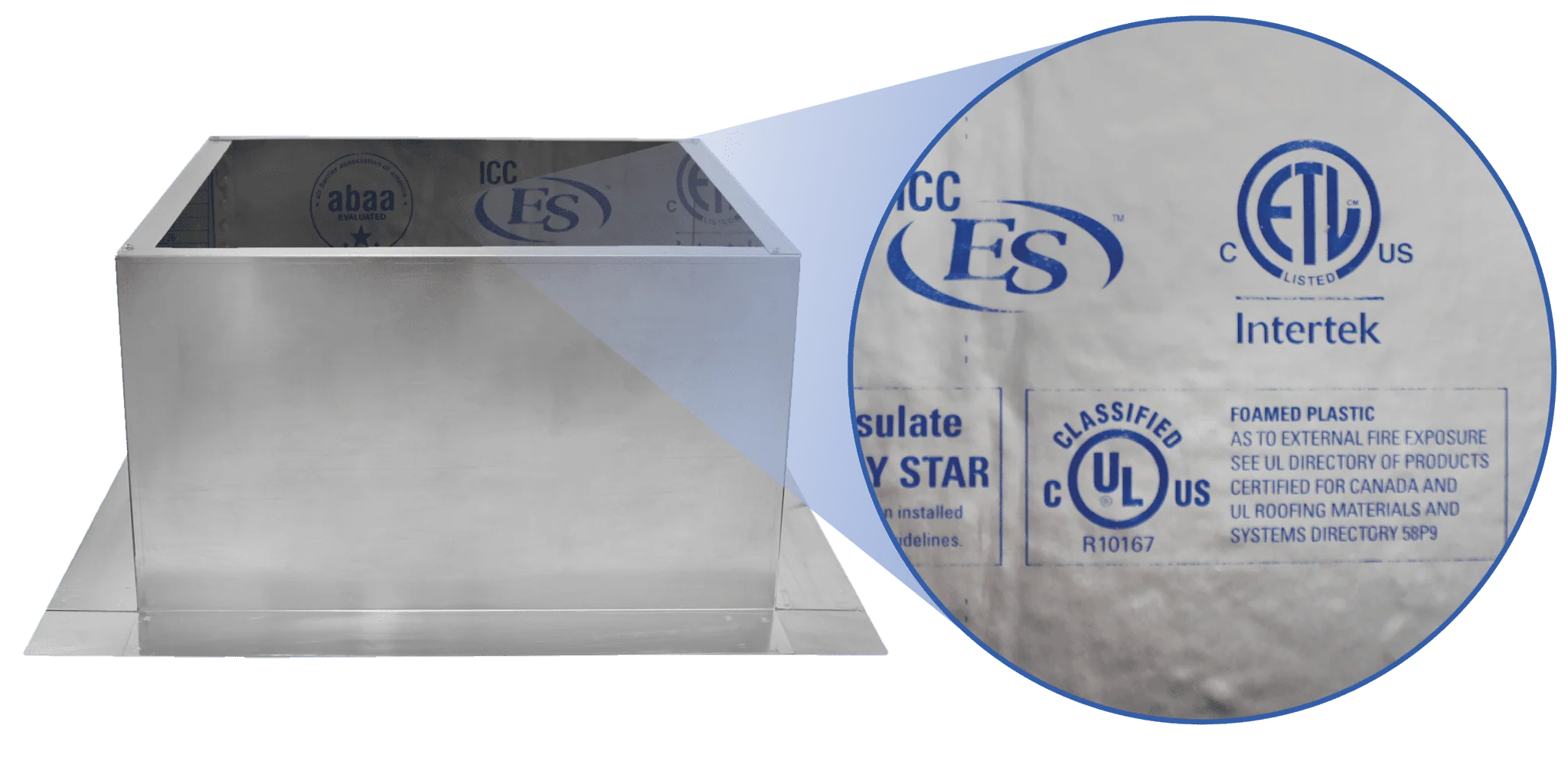

Insulation is Johns Manville R-6, 1-inch thick foil-faced polyiso board. Polyiso has the highest R-value per inch of any rigid board insulation. This insulation meets both CFC- and HCFC-free specification requirements.
Installation: Only for EPDM, PVC, and TPO roofs.
- Improves Energy Efficiency
- Exceptional Thermal Control
- Water Resistive Barrier
- Air Barrier
- Vapor Retarder
- Acoustical Control

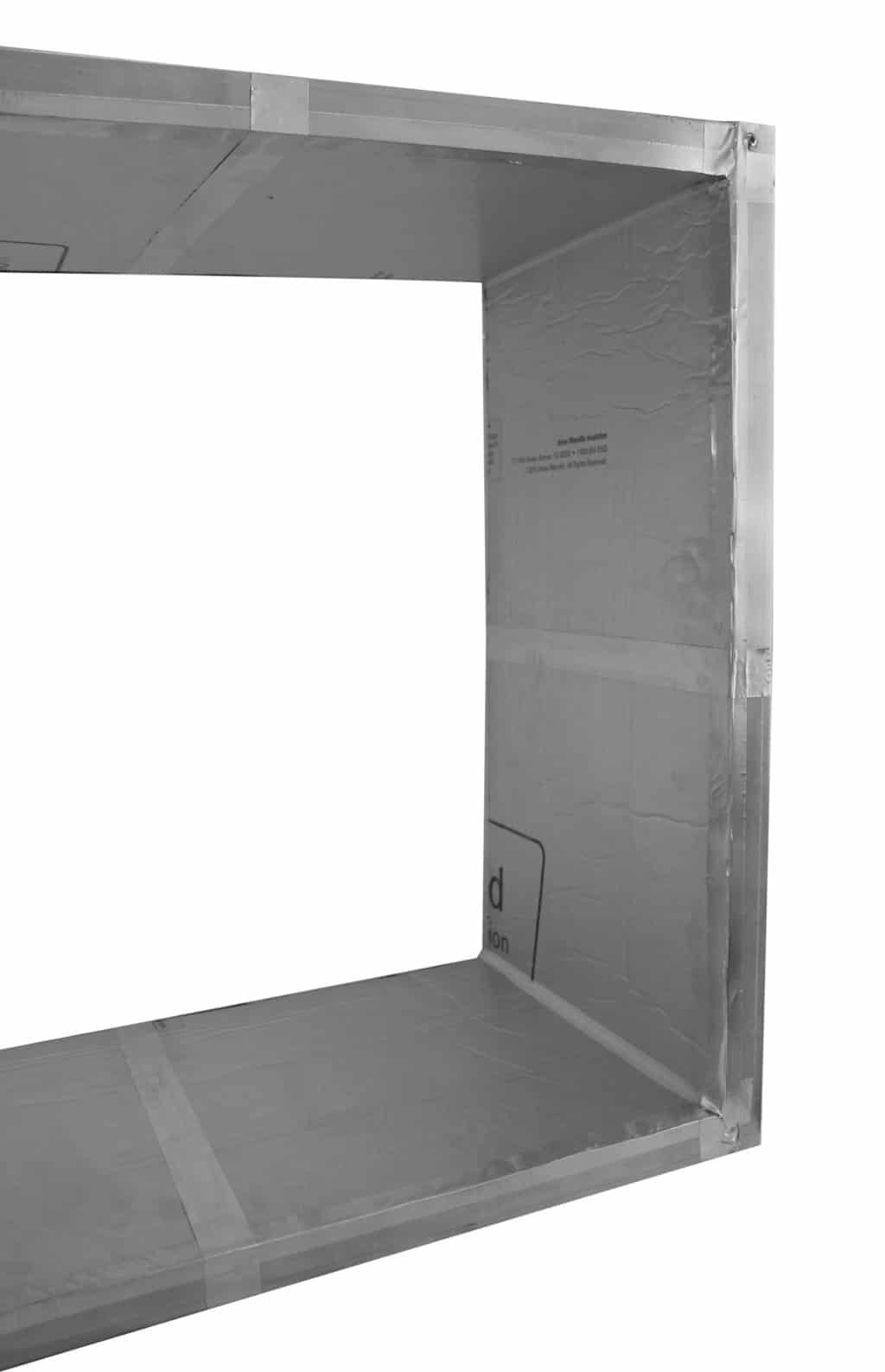

Insulated roof curbs provide an extra layer of protection from the outside weather. The Johns Manville insulation is double-foiled to stop the build-up of moisture. Instead, the foil repels water to prevent possible mold from forming.

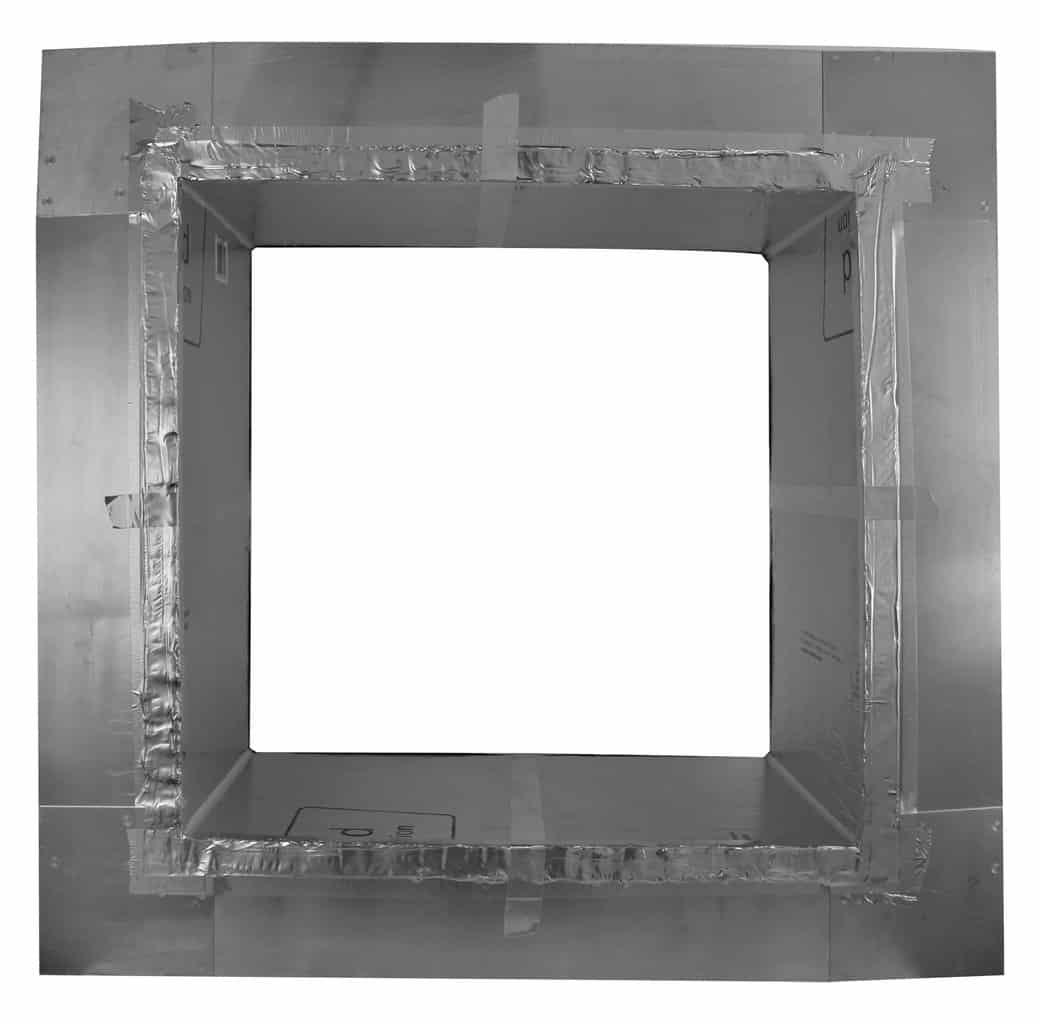

The flashing allows for fasteners to attach the curb to the roof securely. Once placed, it is to be covered with roofing material for a water-tight seal.
Building heavy wooden curbs can cause damage to the roofing membrane. Instead, eliminate the possibility of damage by using AVP's prefabricated ones. This roof curb is aluminum alloy 3003-H14 with a 0.040" thickness (± 0.005”).
In addition, AVP offers curbs 6 inches tall, 12 inches tall, and 18 inches tall.
What is a Roof Curb?
A Roof Curb is a metal frame that acts as a platform for mounting a roof vent or fan. As a result, this platform will provide additional height, allowing installation in all climate zones. Proper installation ensures that the accessory has a level platform for attachment. They also work as a hatch, allowing easy access to attic ductwork, HVAC units, or maintenance.
AVP's Curb Mounted Flange Vent Lines are ready to install on the appropriately sized roof curbs. This includes the Aura Vent, Pop Vent, and Round Back Vent. AVP also manufactures Attic Fans and Aura Solar Fans with curb mount flanges for powered ventilation.
For any questions, email the sales team at [email protected] or call 845-565-7770.
